Evolv 510 Connector


Out of stock

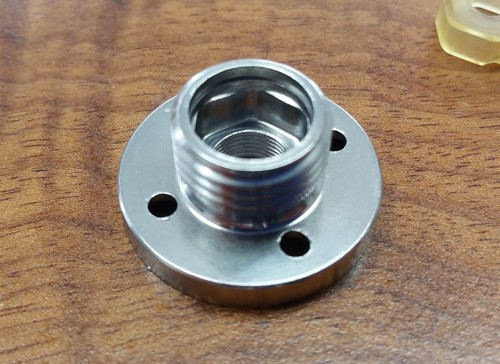

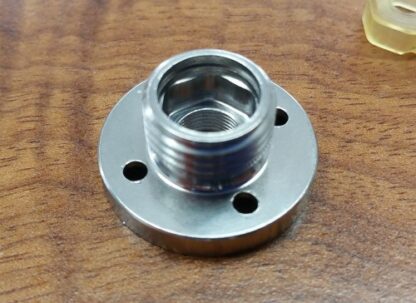

This is Evolv’s 510 connector as found on the reference “beta” device. It is specifically designed for the needs of temperature control boards up to 200 watts. It features a wave spring design which provides extra pressure on the atomizer pin to stabilize resistance readings. The pin is designed with a large bore solder recess which accepts wire up to 12 gauge. C-clip core retention for one of the┬ástrongest designs on the market. Designed to screw into metal cases and ground through the case or secure with screws through the holes in the connector deck.

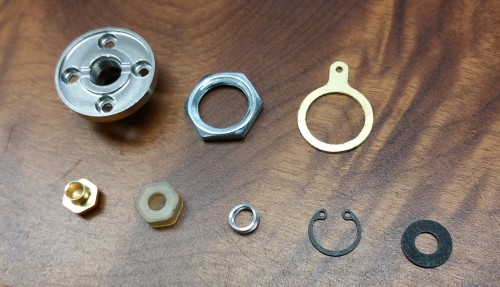

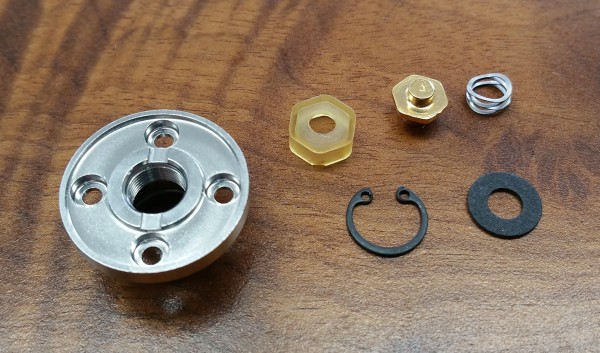

Each connector includes:

  • Stainless 510 connector body
  • Ultem hexagonal insulator
  • Brass center pin
  • Wave spring
  • Retention washer
  • Retention clip
  • Compact 5/8″ thin backing nut for through-hole configurations
